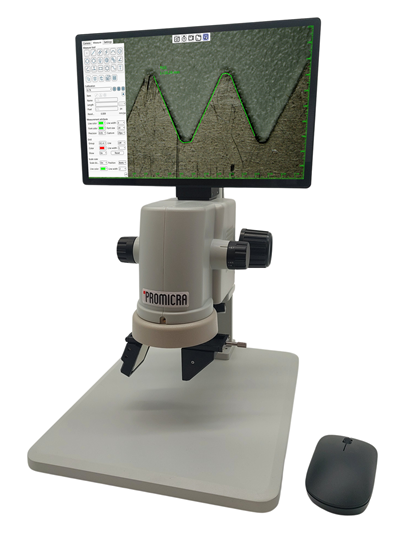

PRO-7 3D 5MAll-in-One 3D digital microscope that doesn't need a computer and saves space and money
The PRO-7 3D 5M digital microscope is a modern, economical alternative to conventional stereomicroscopes and is the ideal solution for fast and quick observation of samples and 2D measurements without the use of a computer. The unique built-in 3D attachment allows viewing the spatial arrangement of samples.
The device includes a microscope with 7:1 optical zoom, a digital HD camera, a computer with mouse-controlled measurement software, a ring LED illuminator, a stand and an integrated LCD monitor.
The PRO-7 3D 5M microscope not only saves money, but also space on the desktop. Observation on the built-in monitor instead of eyepieces saves the user’s health.
The PRO-7 3D 5M microscope is suitable for inspection and quality control in production as well as for life science applications and education.
Key benefits of the PRO-7 3D 5M:
Cost Savings
The All-in-One solution saves significant costs compared to a combination of a conventional stereomicroscope and macroscope.
Low Operator Requirements
The device is also suitable for less experienced users, as operation is simple and intuitive.
Ergonomic Design
Viewing on a monitor instead of eyepieces ensures more comfortable and healthier work.
Space Saving
The All-in-One solution without an external PC saves space in the workplace.
High Image Quality
High-quality images and videos in 5 MP (3072 × 1728 px) resolution.
Who is the PRO-7 3D 5M Ideal Choice For?
The PRO-7 3 5M is designed for customers who need a fast and reliable solution for everyday work. Thanks to its simple operation and professional outputs, it is ideal for both production facilities and life science applications.
Key Features:
Detailed and smooth live image without delay.
Fast inspection from macro to micro detail in one device.
Ideal for documentation and further processing of results.
Minimal installation and maintenance requirements.
Direct observation on the built-in monitor with a resolution of 1920 × 1080 px.
Option to connect an external monitor or projector for more comfortable work or presentations.
Easy transfer, backup, and archiving of results.
Features
- All-in-One digital microscope that does not require a computer, saving both space and financial resources
- Built-in 11.6″ Full HD monitor with HDMI connection for a second device: TV, projector, or secondary monitor
- Microscope functions operated via a wireless mouse directly on the device’s monitor
- Unique capability for spatial observation using a 3D adapter; seamless switching between 2D and 3D observation; same central position for both standard 2D and 3D observation
- Wide optical zoom range of 7:1 (0.7 – 5×) with constant focal plane and click-stop positions: 0.7×, 1×, 1.5×, 2×, 2.5×, 3×, 4×, 5×
- Built-in HD digital camera with 5 MP image resolution
- Smooth live view with Full HD resolution (1920 × 1080 px) at 60 fps
- Integrated computer with measurement software
- Built-in powerful LED ring light illuminator with adjustable intensity, providing homogeneous sample illumination
- Wide range of measurement functions in live view with the option to save into images
- Adding text notes with an arrow to the live view with the option to save them into images
- Saving 5 MP (3072 × 1728 px) images, Full HD (1920 × 1080 px@30fps) recorded videos, and measurement results to a connected USB flash drive or microSD card
- Time-lapse imaging
- Viewing saved images and videos directly on the device
- Exporting measurement results to a CSV file (compatible with Microsoft® Excel® and other spreadsheet software)
- Easy handling and quick system startup
- Ergonomic positioning of the built-in monitor to reduce user fatigue
- Optional extension with an additional 0.5× objective lens
- Optional advanced stands such as a transmitted light stand, boom stands, and LED illuminators
- Certifications: CE, RoHS
- Dimensions including the built-in monitor (w × d × h): 28 × 33 × 46 cm (11 × 13 × 18.1 in); weight: 4.6 kg
- Suitable also for educational purposes
Measurement Functions
- Measurements directly in live view with the option to save measurements into acquired images
- Selection of units and number of displayed decimal places
- Point coordinates
- Line segment length, distance between parallel lines, polyline length
- Radius and angle of an arc
- Circle defined by radius, diameter, or three points: radius, diameter, perimeter, and area
- Distance of the circle center from a reference line
- Concentric circles – radii, diameters, perimeters, areas
- Distance between the centres of two circles
- Angle defined by three points
- Angle defined by two line segments with the vertex possibly outside the field of view
- Perpendicular distance from a reference line
- Rectangle: perimeter and area
- Polygon – perimeter and area
- Display of scale bar, central cross, rulers, and grids
- Automatic snapping of measurement points to edges in the image
- Options to choose the color and thickness of measurement object lines
- Expanded measurement uncertainty: ±7.32 µm for the 1× objective, ±17.45 µm for the 0.5× objective
Magnification Specifications
| Objective Magnification | 1× (included) | 0.5× (optional) |
|---|---|---|
| Total magnification on the built-in 11.6″ monitor | 14× – 99× | 7× – 48× |
| Total magnification on optional 24″ monitor | 29× – 205× | 14.5× – 103.5× |
| Field of view | 17.5 × 9.9 mm – 2.6 × 1.4 mm | 36 × 20 mm – 5 × 3 mm |
| Working distance | 110 mm | 180 mm |

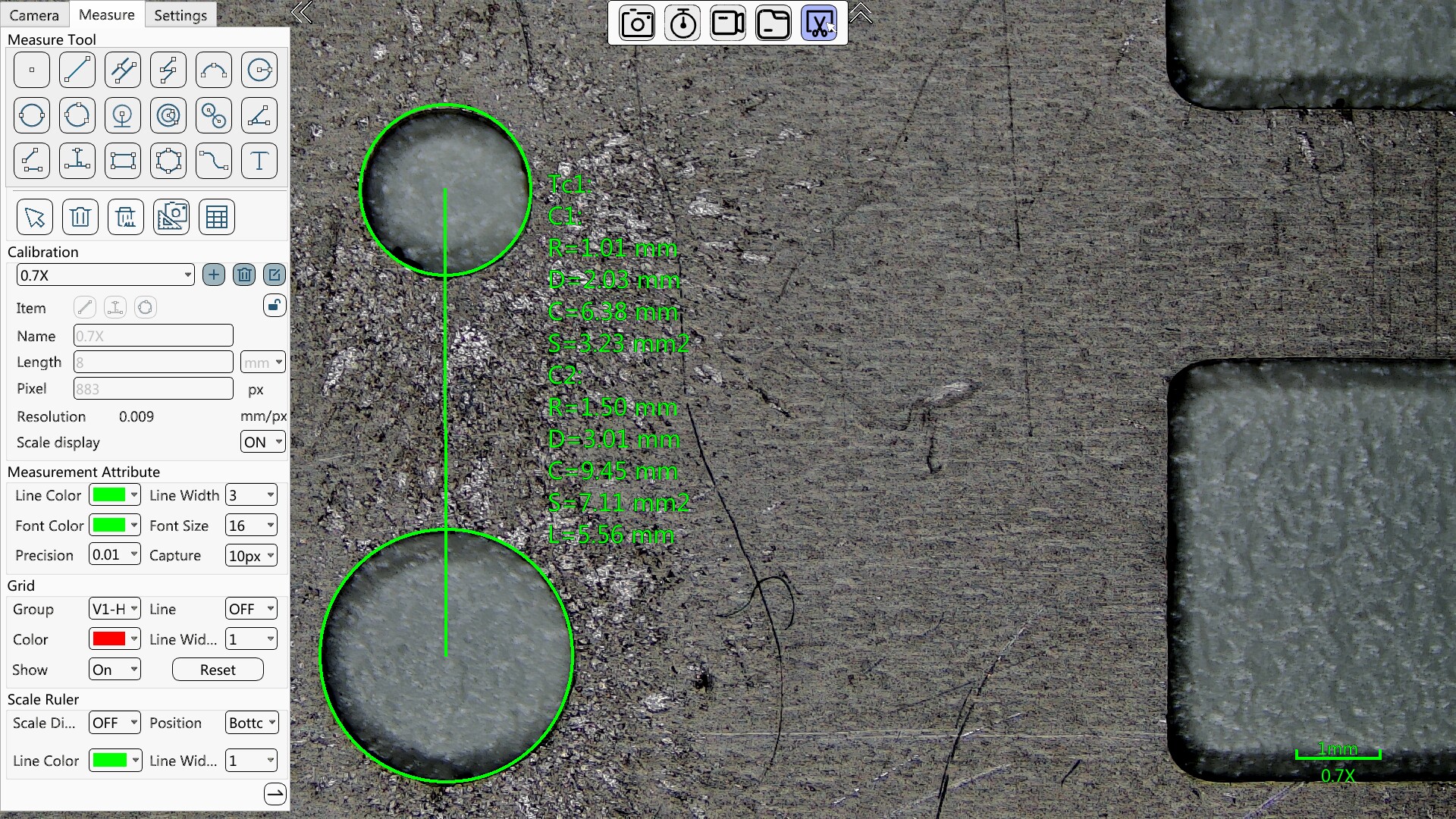

Measurement Examples
Video Examples of 3D Observations
PRO-7 3D 5M – technical applications
PRO-7 3D 5M – life science applications

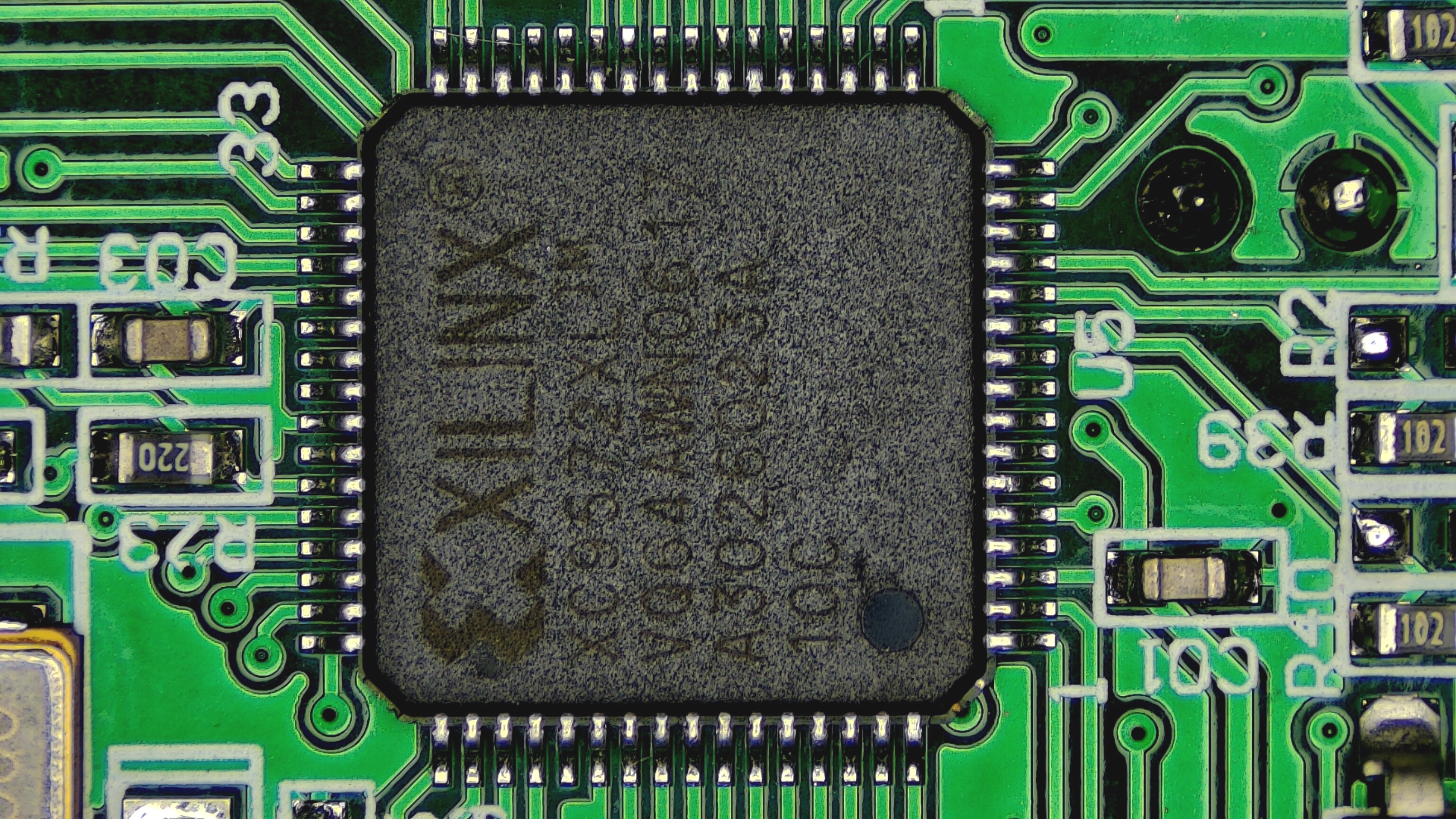

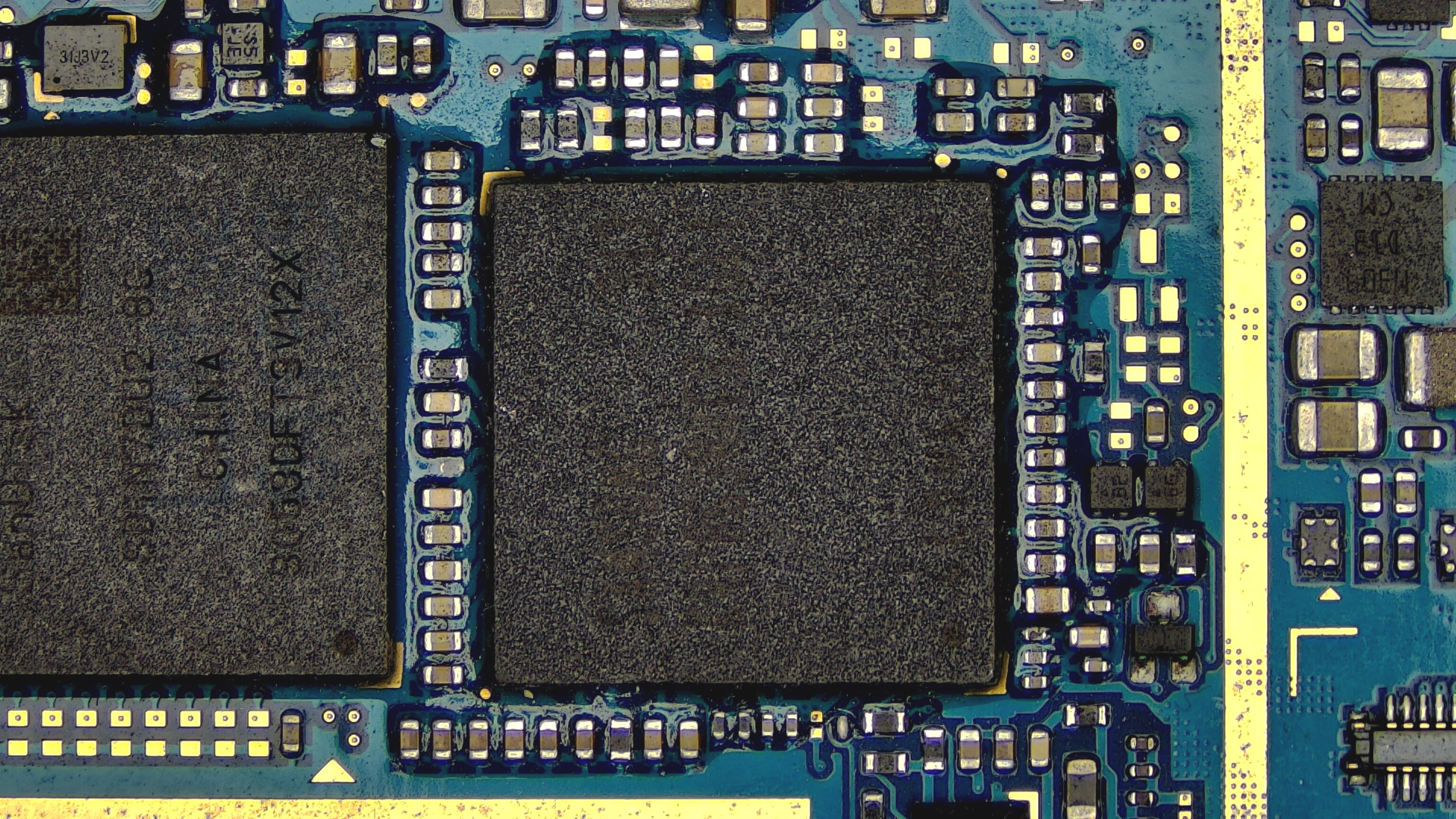

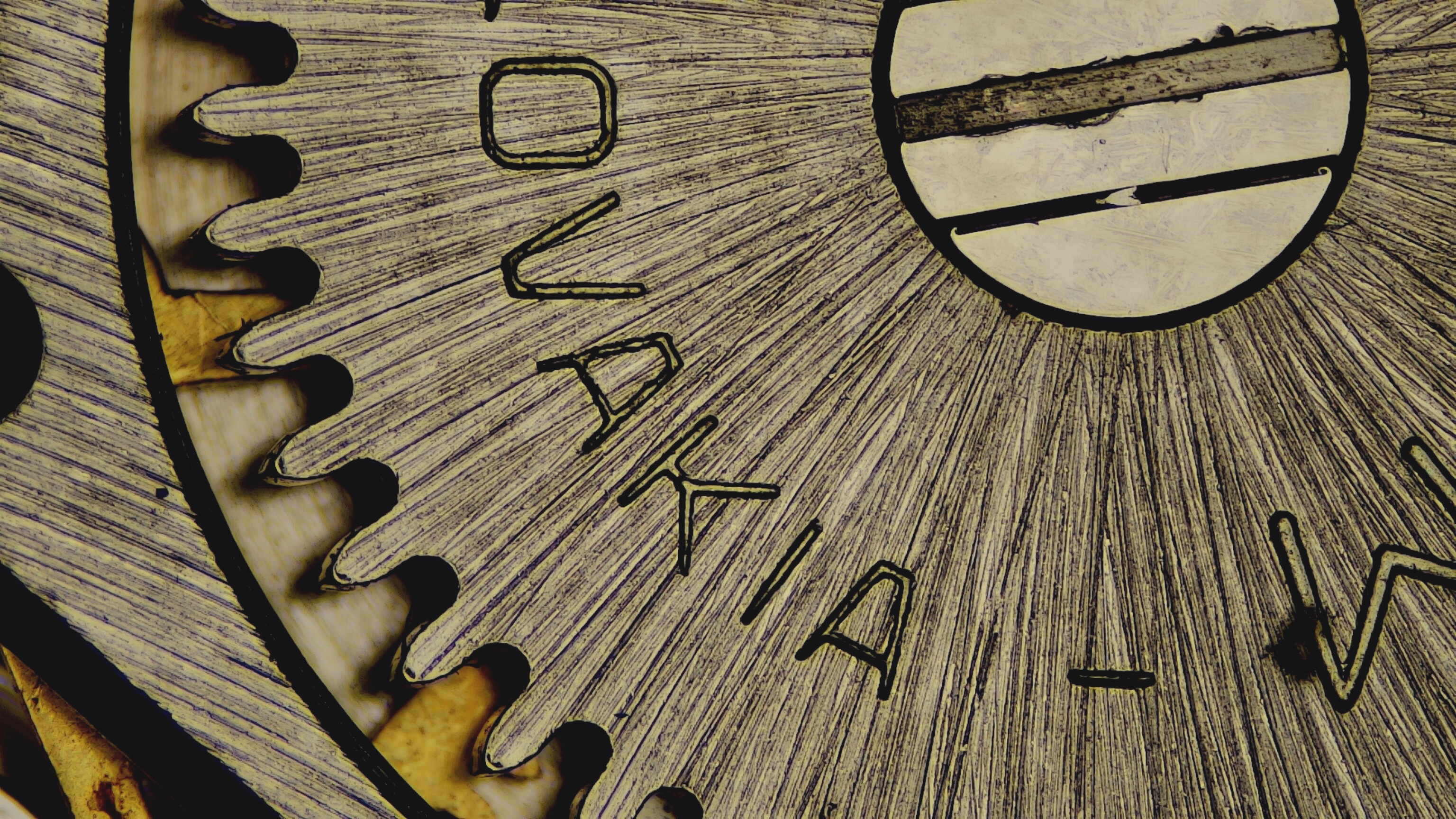

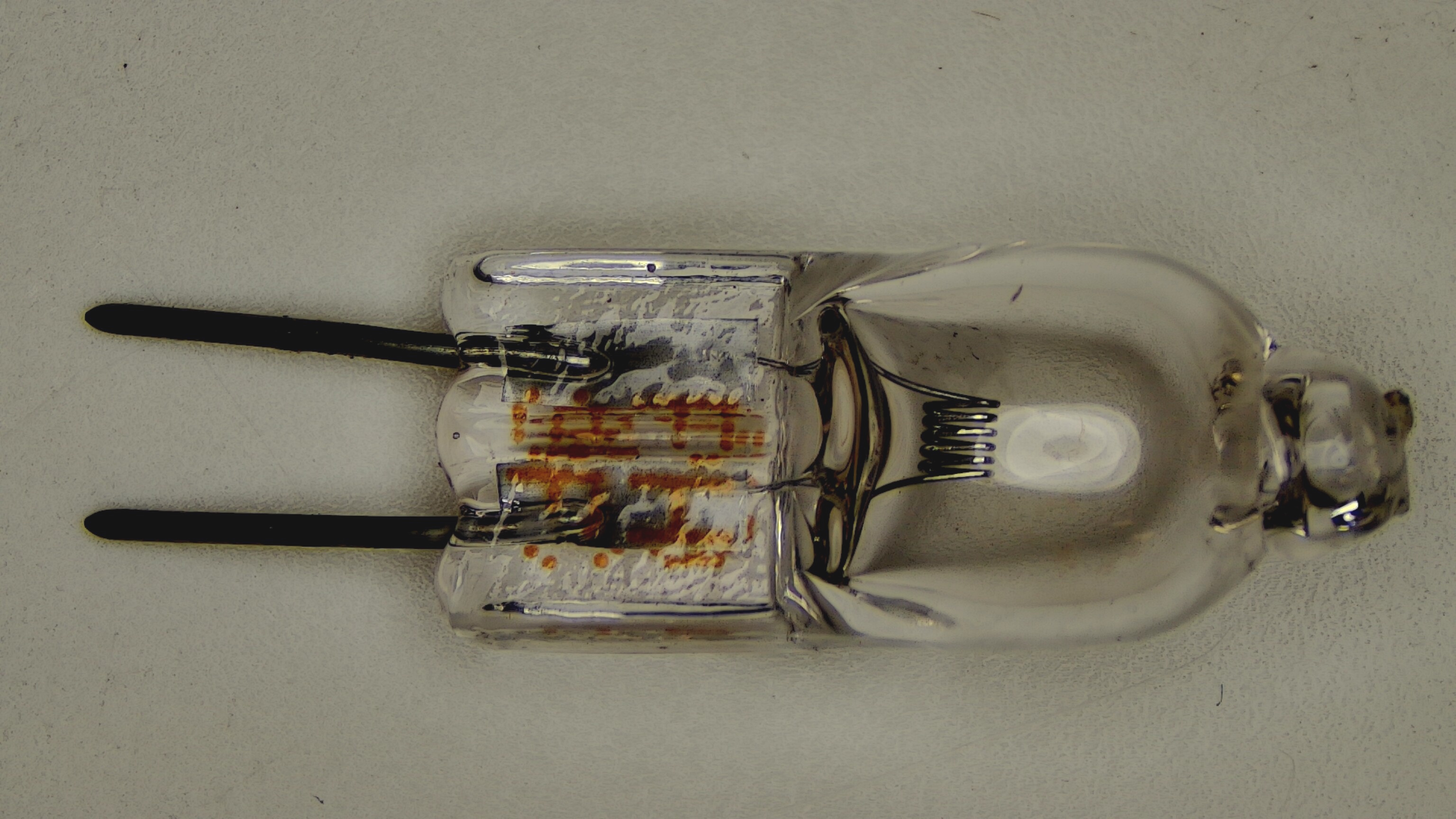

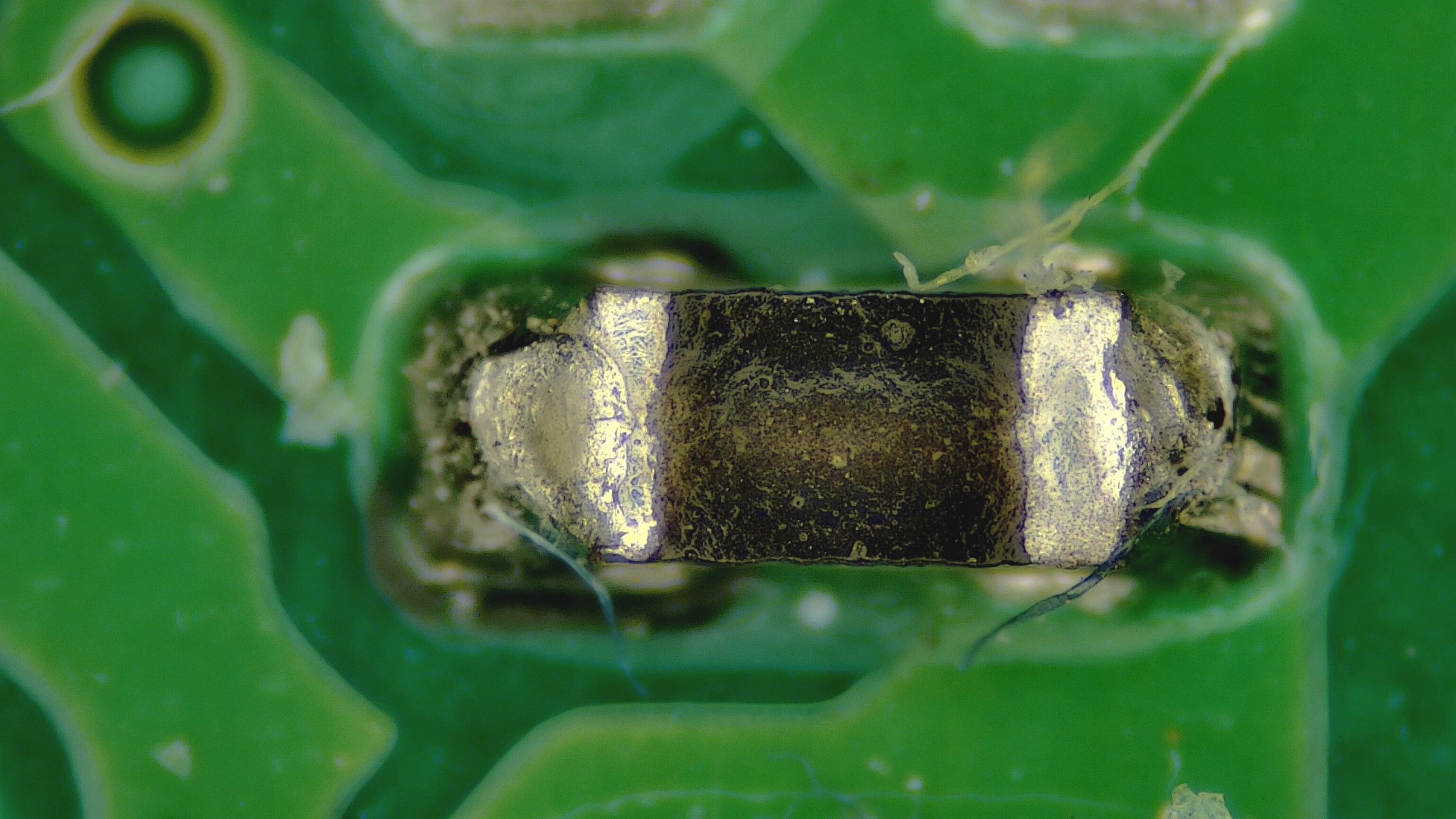

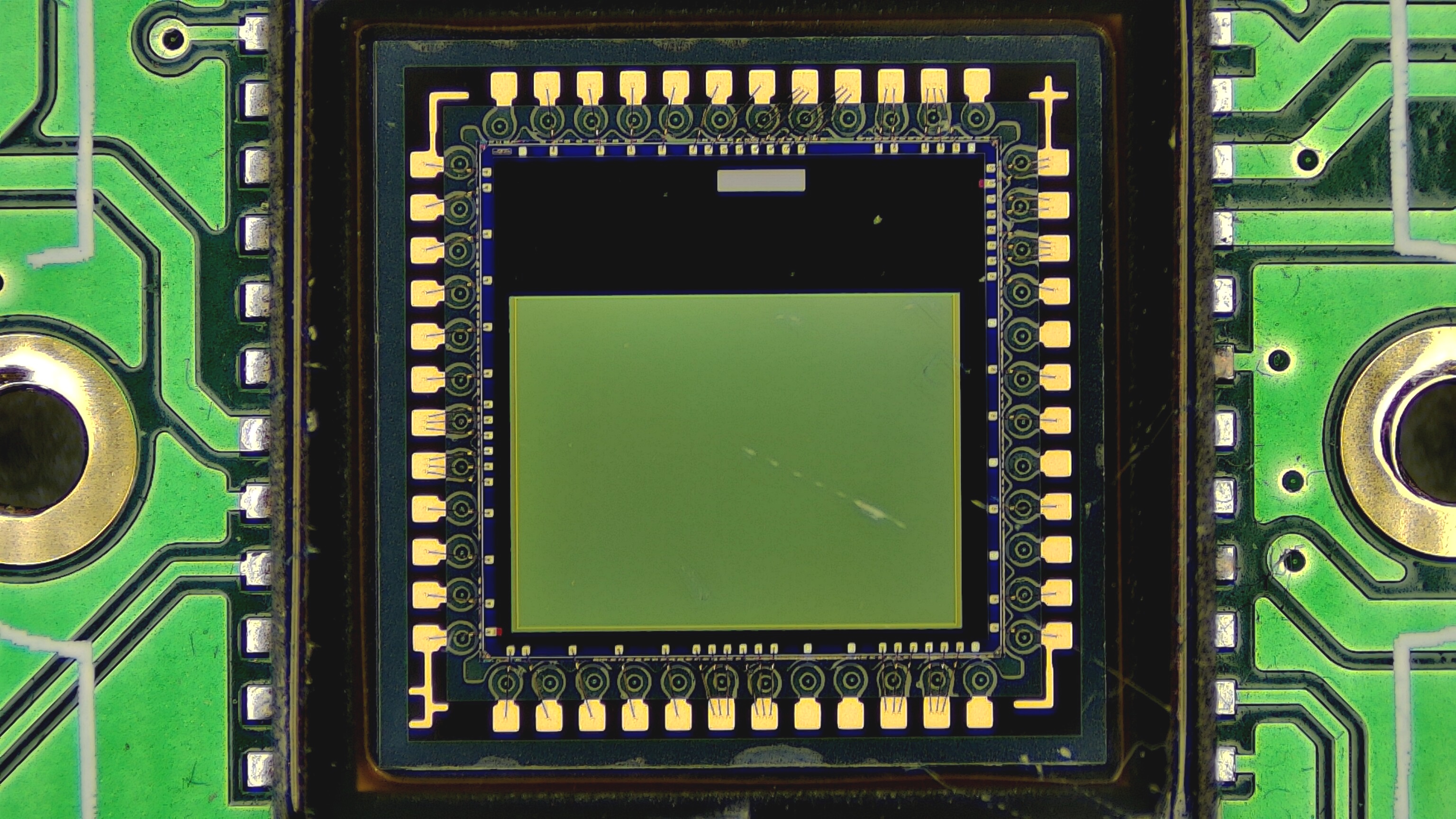

Images Acquired by PRO-7 3D 5M - Technical Application
Images Acquired by PRO-7 3D 5M - Life Science Applications
Parts of the Basic Configuration
- The microscope body with a 7:1 zoom and built-in 1× objective lens, 5 MP built-in digital camera, integrated computer with measurement software, built-in 11.6″ Full HD monitor, 12V power supply
- Ring light LED illuminator
- 3D adapter for spatial observation
- 11.6″ Full HD LCD monitor with mounting arm, HDMI cable and 12V AC adapter
- Stand with a flat base measuring (w × d) 26 × 32 cm and a column of 45 cm height
- Wireless mouse
- USB flash drive for saving images, videos, and measurement results
