Image Stitching - Extension Module for QuickPHOTOStitching of multiple fields of view together
Image Stitching is an extension software module for QuickPHOTO microscope software. It enables to interactively stitch together multiple fields of view during a manual stage movement using the live view of PROMICAM USB 3.0 and PROMICAM LITE cameras. The module also allows you to stitch together images from microscope acquired by any imaging device.
Features

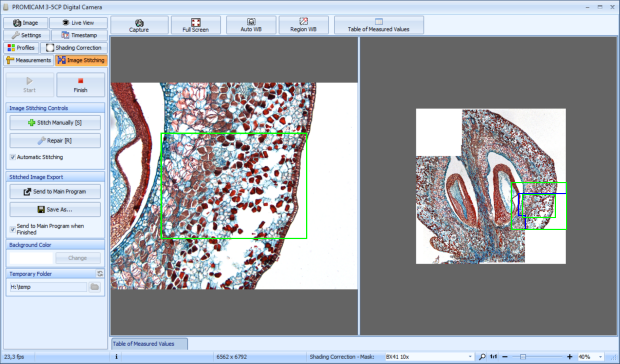

Live View Stitching
Seamless high-quality image stitching using the live view of PROMICAM USB 3.0 and PROMICAM LITE cameras

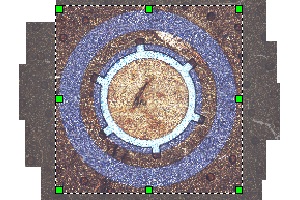

Stitching of Acguired Images
Stitching of images acquired by any imaging device
Up to Several Gigapixels
Stitching of just a few images as well as whole samples with resolution up to several gigapixels
Illumination Homogeneity
Excellent illumination homogeneity using shading (background) correction feature
Measurements
Precise measurements in stitched images
All Microscope Types
The module can be used with any type of optical microscope with manual X-Y stage.
Biology and Industry
Suitable for biological as well as industrial applications
Processing on Hard Drive
Processing on a hard drive minimizes operating memory consumption.
Image Stitching Sample Images
System Requirements
| Minimum Requirements | Recommended Specifications | |
|---|---|---|
| Processor | Intel® Core® i3 | Intel® Core™ i5 / AMD RYZEN™ 5 or better |
| Operating Memory | 2 GB | 4 GB or more |
| Operating System | Microsoft® Windows® 7/8.1/10/11 (32bit or 64bit) | Microsoft® Windows® 10/11 (64bit) |
| Display Resolution | 1024 x 768 | 1920 x 1080 or higher |
| QuickPHOTO version | 3.0 | 3.2 |
| Camera | - | PROMICAM USB 3.0 or PROMICAM LITE |
| Microscope | with manual X-Y stage | with manual X-Y stage |
| Minimum Requirements | |
| Processor | Intel® Core® i3 |
| Operating Memory | 2 GB |
| Operating System | Microsoft® Windows® 7/8.1/10/11 (32bit or 64bit) |
| Display Resolution | 1024 x 768 |
| QuickPHOTO version | 3.0 |
| Camera | PROMICAM USB 3.0 or PROMICAM LITE |
| Microscope | with manual X-Y stage |
| Recommended Specifications | |
| Processor | Intel® Core™ i5 / AMD RYZEN™ 5 or better |
| Operating Memory | 4 GB or more |
| Operating System | Microsoft® Windows® 10/11 (64bit) |
| Display Resolution | 1920 x 1080 or higher |
| QuickPHOTO version | 3.2 |
| Camera | PROMICAM USB 3.0 or PROMICAM LITE |
| Microscope | with manual X-Y stage |
Optional Equipment
- SSD drive is recommended for speeding up the work when stitching images larger than 100 megapixels.
