PRO-SZM1 - Focus Drive for Stereomicroscopes

PRO-SZM1 is an inexpensive focus drive developed by PROMICRA for focus motorization of stereomicroscopes with 76mm mount (yoke). Manual focusing option is maintained. The focus drive can be used for automatic creating of fully focused (EDF) images using Deep Focus extension module for QuickPHOTO software, optionally also in combination with HDR module for automated EDF + HDR imaging.

 Brochure

REQUEST A QUOTE REQUEST ONLINE DEMONSTRATION
REQUEST A QUOTE REQUEST ONLINE DEMONSTRATION

Features

SZ2-ILST-ZM LED illuminated stand with CB-ZM control unit

  • PRO-SZM1 focus drive is delivered mounted on a stereomicrocope stand with 76mm mount (yoke) as a single unit.
  • Two stand variants available: standard stand (SZ2-ST-ZM item) and stand with combination of reflected and transmitted LED illumination (SZ2-ILST-ZM item)
  • Motorized Z axis (travel and focusing)
  • Manual focus function maintained
  • Minimal step 65 μm
  • Travel range 12 cm; 4.7 inch
  • Z-movement range protected by built-in limit switches
  • Controlled by CB-ZM control unit (CB-ZM-SZM1 variant – required):
    • Focusing and Z-movement by UP and DOWN buttons
    • Change of focus speed using a SPEED button – 4 predefined speed levels available
    • Automatic speed incrementation when holding UP or DOWN button
    • Compatibility with Deep Focus Extended Depth of Field (EDF) module for QuickPHOTO software, optionally also in combination with HDR module for EDF + HDR imaging
    • Remote control by a two-button foot switch (optional)
  • CE certified and RoHS compliant

Examples of Compatible Stereomicroscopes:

  • OLYMPUS® SZX7 and SZ61/51
  • Nikon® SMZ1270/1270i, SMZ800/800N, SMZ745/745T, SMZ445, SMZ460
  • Leica® S6 series, S9 series, M50, M60, M80, S8APO, MZ10F
  • Zeiss® Stemi 305, Stemi 508
  • Huvitz® HSZ-700 and HSZ-600 series
  • Motic® SMZ series with 76mm mount (yoke)
  • All other stereomicroscopes with 76mm mount (yoke)

Examples of Use

Loading Images
Olympus SZX7 with SZ2-ST-ZM stand and Sunflower illuminator
Olympus SZX7 with SZ2-ST-ZM stand and Sunflower illuminator
OLYMPUS SZX7 with SZ2-ST-ZM stand and Sunflower illuminator
OLYMPUS SZX7 with SZ2-ST-ZM stand and Sunflower illuminator
SZ2-ST-ZM motorized stand with OLYMPUS SZ61 microscope
SZ2-ST-ZM motorized stand with OLYMPUS SZ61 microscope
SZ2-ST-ZM stand with Optem inspection system
SZ2-ST-ZM stand with Optem inspection system

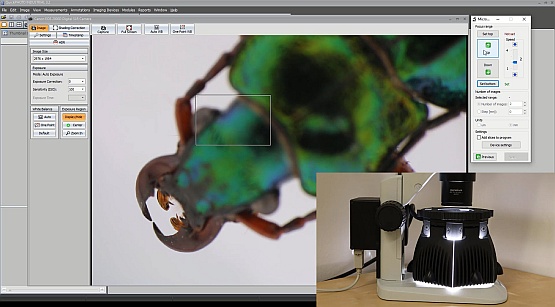

Motorized Focus Stacking Using Deep Focus Module

Related Products

Deep Focus

Extended depth of field (EDF) module for creating fully focused images

QuickPHOTO Microscope Software

Image acquisition and measurement microscope software

Focus Motorization

Motorized microscope stands and focus drives suitable for extended depth of field (EDF) imaging

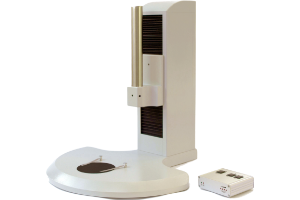

PRO-MLS

Motorized heavy-duty stand suitable for microscopy as well as macro focus stacking applications
