PROMICAM - Modern Cameras for Microscopy

PROMICAM series digital cameras produced by PROMICRA are suitable for microscopy and macro applications. All PROMICAM cameras are supported by QuickPHOTO microscope software and can be used with any microscope equipped with a C-mount photo port. Our best-selling PROMICAM PRO 3-3CP and PROMICAM PRO 3-5CP cameras feature the state of the art Sony^® Pregius^® CMOS sensors. Those two cameras can also be used for manual whole slide scanning.

REQUEST A QUOTE REQUEST ONLINE DEMONSTRATION

Comparison of Cameras

Model	Resolution	Sensor	Color	Shutter Type	Sensor Size	Max. Frame Rate @Full Resolution	Interface
PROMICAM PRO 3-3CP	3.1 MP	CMOS		global shutter	1/1.8″ (7.07 × 5.30 mm)	60 FPS	USB 3
PROMICAM PRO 3-5CP	5 MP	CMOS		global shutter	2/3″ (8.45 × 7.07 mm)	38 FPS	USB 3
PROMICAM PRO 3-5MP	5 MP	CMOS		global shutter	2/3″ (8.45 × 7.07 mm)	38 FPS	USB 3
PROMICAM PRO 3-16CP	16 MP	CMOS		global shutter	1,1″ (14.58 × 8.31 mm)	23 FPS	USB 3
PROMICAM PRO 4K	12 MP, 4K	CMOS		rolling shutter with global reset	1/1.7″ (7.4 × 5.6 mm)	30 FPS	USB 3
PROMICAM LITE 5	5 MP	CMOS		rolling shutter	1/2.5″ (5.70 × 4.28 mm)	15 FPS	USB 3
PROMICAM HDMI 16	16 MP	CMOS		rolling shutter	1/1.06″ (13.06 × 7.34 mm)	60 FPS	HDMI, USB 3, Wi-Fi
PROMICAM HDMI 4K	8 MP, 4K	CMOS		rolling shutter with global reset	1/1.2″ (11.1 × 6.3 mm)	30 FPS	HDMI

PROMICAM PRO 3-3CP
Resolution	3.1 MP
Sensor	CMOS
Color
Shutter Type	global shutter
Sensor Size	1/1.8″ (7.07 × 5.30 mm)
Max. Frame Rate (@Full Resolution)	60 FPS
Interface	USB 3
PROMICAM PRO 3-5CP
Resolution	5 MP
Sensor	CMOS
Color
Shutter Type	global shutter
Sensor Size	2/3″ (8.45 × 7.07 mm)
Max. Frame Rate (@Full Resolution)	38 FPS
Interface	USB 3
PROMICAM PRO 3-5MP
Resolution	5 MP
Sensor	CMOS
Color
Shutter Type	global shutter
Sensor Size	2/3″ (8.45 × 7.07 mm)
Max. Frame Rate (@Full Resolution)	38 FPS
Interface	USB 3
PROMICAM PRO 3-16CP
Resolution	16 MP
Sensor	CMOS
Color
Shutter Type	global shutter
Sensor Size	1,1″ (14.58 × 8.31 mm)
Max. Frame Rate (@Full Resolution)	23 FPS
Interface	USB 3
PROMICAM PRO 4K
Resolution	12 MP, 4K
Sensor	CMOS
Color
Shutter Type	rolling shutter with global reset
Sensor Size	1/1.7″ (7.4 × 5.6 mm)
Max. Frame Rate (@Full Resolution)	30 FPS
Interface	USB 3
PROMICAM LITE 5
Resolution	5 MP
Sensor	CMOS
Color
Shutter Type	rolling shutter
Sensor Size	1/2.5″ (5.7 × 4.28 mm)
Max. Frame Rate (@Full Resolution)	15 FPS
Interface	USB 3
PROMICAM HDMI 16
Resolution	16 MP
Sensor	CMOS
Color
Shutter Type	rolling shutter
Sensor Size	1/1.06″ (13.06 × 7.34 mm)
Max. Frame Rate (@Full Resolution)	60 FPS
Interface	HDMI, USB 3, Wi-Fi
PROMICAM HDMI 4K
Resolution	8 MP, 4K
Sensor	CMOS
Color
Shutter Type	rolling shutter with global reset
Sensor Size	1/1.2″ (11.1 × 6.3 mm)
Max. Frame Rate (@Full Resolution)	30 FPS
Interface	HDMI

USB 3 Cameras

PROMICAM PRO 3-3CP

3.1 MP USB 3 color digital microscope camera with 1/1.8″ Sony^® Pregius^® global shutter CMOS sensor

PROMICAM PRO 3-5CP

5 MP USB 3 color digital microscope camera with 2/3″ Sony^® Pregius^® global shutter CMOS sensor

PROMICAM PRO 3-5MP

5 MP USB 3 monochrome digital microscope camera with 2/3″ Sony^® Pregius^® global shutter CMOS sensor suitable for fluorescence and other low-light applications

PROMICAM PRO 3-16CP

16 MP color CMOS USB 3 high-performance digital microscope camera suitable for a wide range of applications including fluorescence

PROMICAM PRO 4K

12 MP color CMOS USB 3 digital camera with 4K@30fps live view

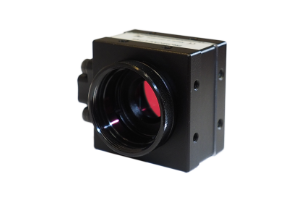

PROMICAM LITE 5

Economical 5 MP USB 3 color CMOS digital microscope camera suitable for standard documentaion and industrial applications

Smart HDMI Cameras

PROMICAM HDMI 16

Stand-alone 16 MP 4K color CMOS HDMI camera with integrated measuring features, which does not require use of a computer.

PROMICAM HDMI 4K

4K color CMOS HDMI camera with integrated measuring features, which does not require use of a computer.
