PROMICAM HDMI 16Stand-alone 16 MP 4K Color CMOS HDMI Camera with Integrated Measuring Features

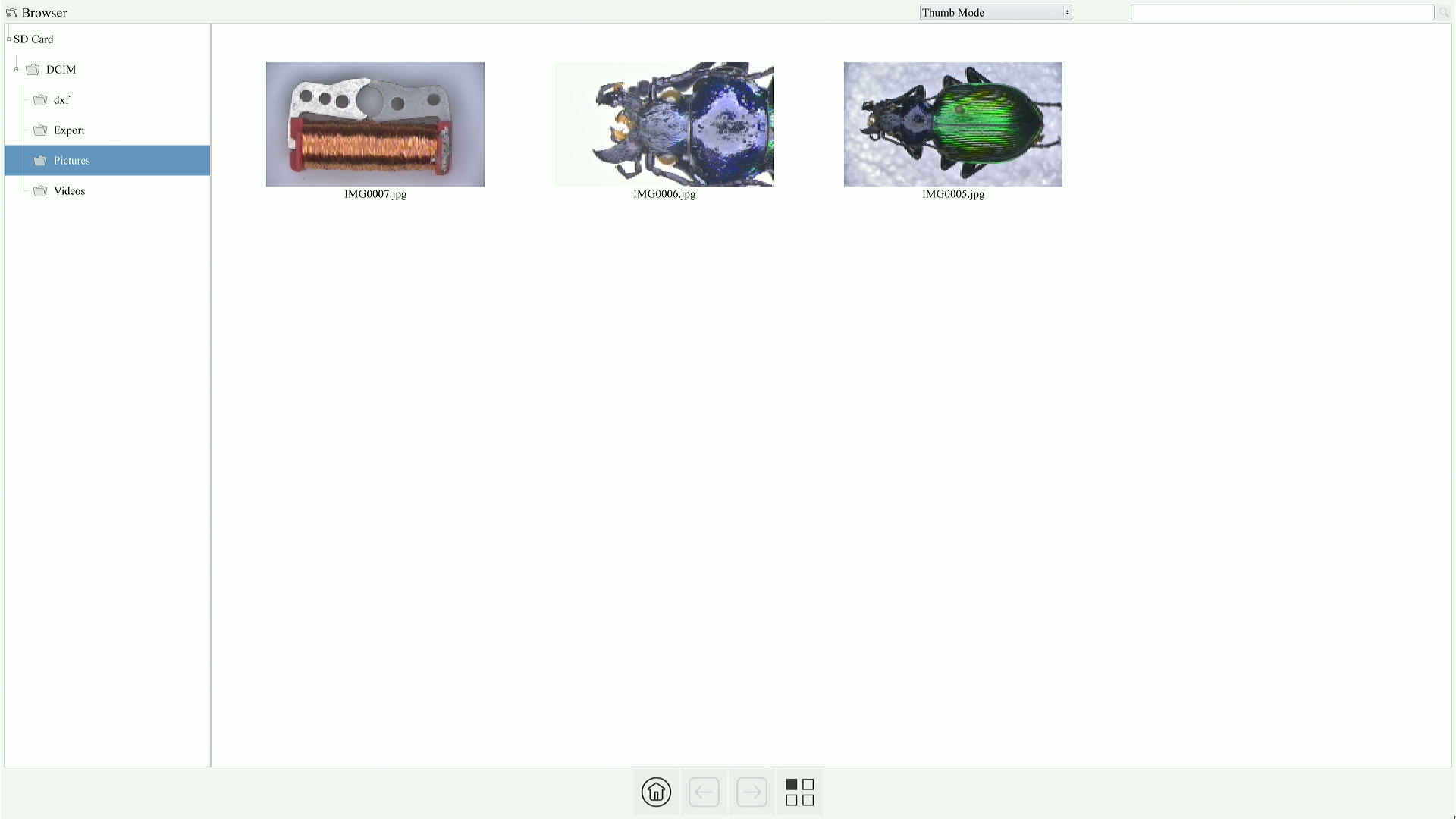

PROMICAM HDMI 16 camera does not require a computer. Simply connect the camera to a monitor via an HDMI cable and connect a mouse directly to the camera. It only takes a few seconds to launch the camera. All functions of capturing, measuring, and browsing the captured images can be controlled by the mouse on the connected monitor. Images and videos are stored on an SD card or USB flash drive. The camera is suitable for a wide range of microscopic applications.
The camera offers live view with up to 4K UHD resolution (3840 × 2160 pixels), high live image frame rate (up to 60 frames per second in 4K UHD resolution), very good sensitivity and color reproduction and high image quality with 16 MP resolution. The camera allows recording 4K UHD video with a frame rate of up to 30 fps.
The camera can be wirelessly controlled via Wi-Fi from tablets or smartphones with Android or iOS operating systems using a free application.
Loading Images
Suitable for Applications:
Bright field / Darkfield
Differential interference contrast (DIC)
Biology / Observation of living cells
Moderate Light Fluorescence
Gel Documentation
Histology / Pathology / Cytology
Metrology / Mineralogy / Metallurgy / Geology
Quality control
Documentation and archiving
Education
Features
- Live view in 4K UHD or Full HD resolution depending on the type of connected monitor with a frequency of 60 frames per second
- Taking 16 MP images, recording video in up to 4K UHD resolution with a frequency of 30 frames per second, measuring and viewing images and video directly on the connected monitor
- Built-in computer with measuring software
- Control with a wireless mouse connected directly to the camera without using a PC
- Connects to monitor, TV or projector via HDMI cable
- Very good color reproduction and high sensitivity
- Very large field of view
- Marking interesting places in the image with arrows and text notes
- Voice control option (take pictures, record video, pause live image)
- Optional foot switch control (take pictures, record video)
- Possibility of wireless control via Wi-Fi from phones and tablets with Android or iOS OS
- Can be connected to any type of microscope with C-mount photo output

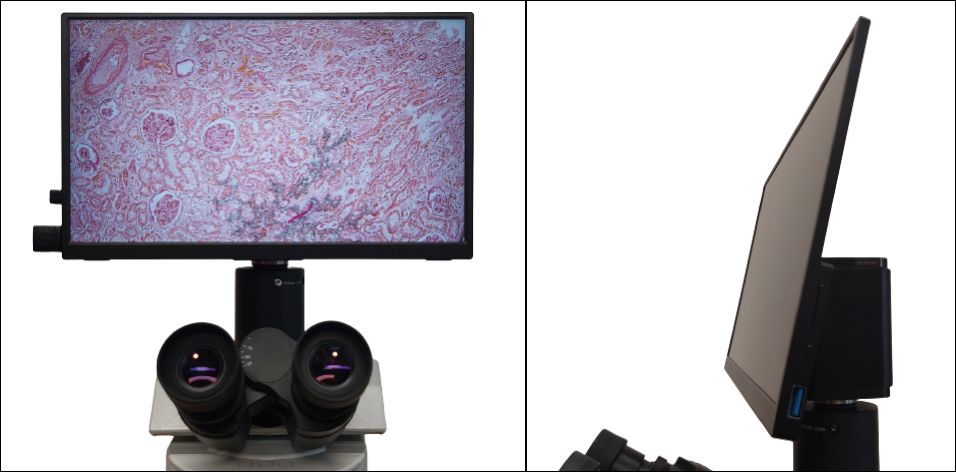

- Optional built-in 4K UHD or Full HD monitor attached to the camera
- Option to compare a live image with a stored image and two or four images side by side
- Option to export measured values as CSV type for Microsoft® Excel® or other spreadsheet
- Saving images and measurement results to a connected USB flash drive or SD card
- Can be controlled from QuickPHOTO programs

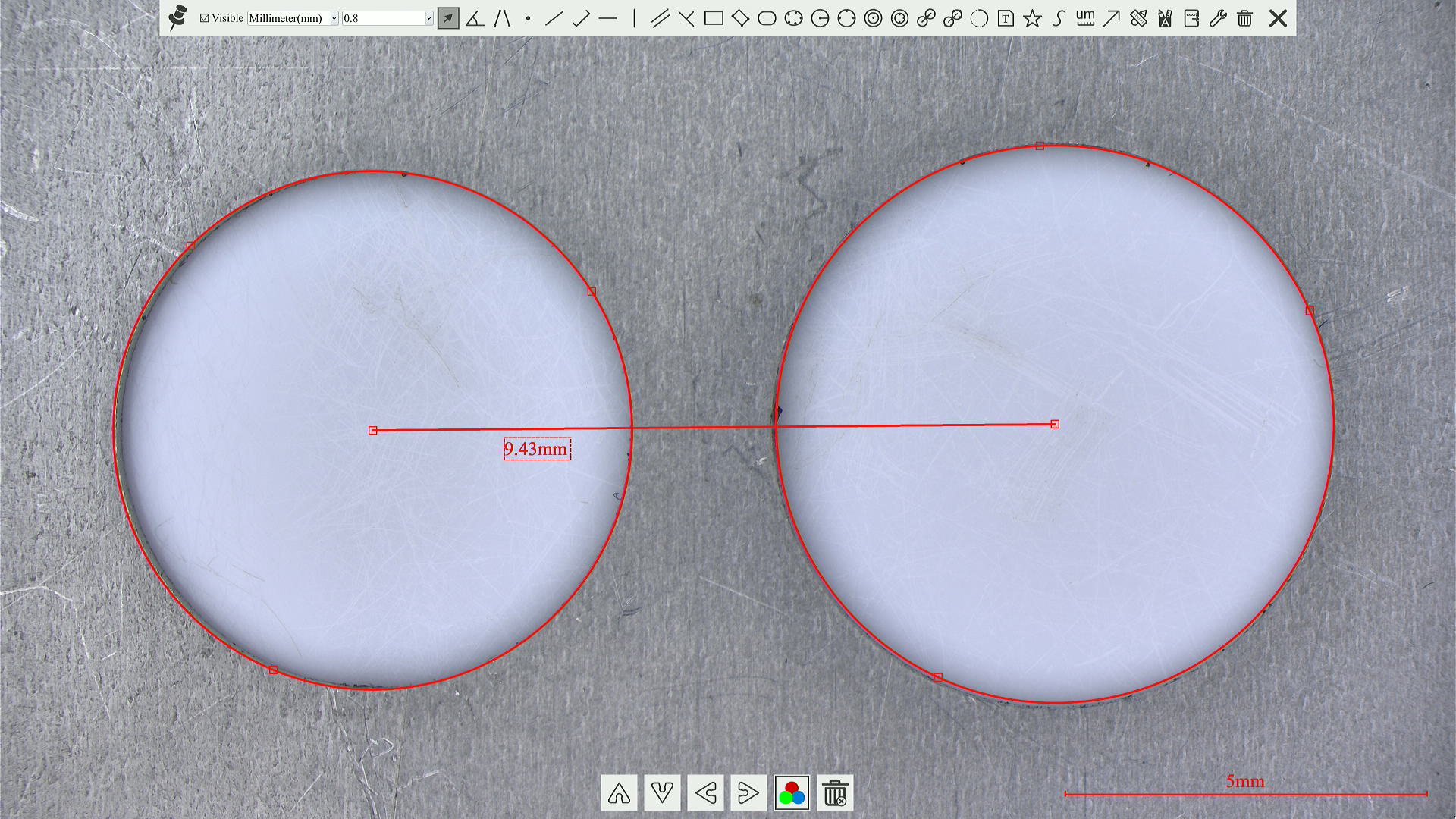

Measuring Features
- Inserting a scale bar
- Measuring lengths using various tools
- Measuring the dimensions, perimeter and area of a rectangle
- Measuring the dimensions, perimeter and area of an ellipse
- Measuring the diameter, circumference and area of a circle
- Measuring diameters and area of annulus
- Measuring the distance between the centers of two circles
- Measuring the angle, diameter and length of the arc
- Measuring the perimeter and area of a polygon
- Measuring the length of a line drawn “by hand”
- Measurements are stored as part of the captured images
- Exporting measured values to a CSV file for Microsoft® Excel® or another spreadsheet
Sample Images Taken with the PROMICAM HDMI 16 Camera
Loading Images
Specifications
| Sensor Type | Sony® STARVIS 2 CMOS, rolling shutter, BSI (back-side illuminated), color |
| Sensor Size | 1/1.06″ (13.06 × 7.34 mm) |
| Sensor Aspect Ratio | 16:9 |
| Pixel Size | 2.4 µm × 2.4 µm |
| Exposure Time | 0.104 ms ~ 1 s |
| Live View Resolution@Max. Frame Rate (fps) | According to the type of connected monitor: 3840 × 2160 px (4K UHD) @60 fps 1920 × 1080 px (Full HD) @60 fps |
| Image Resolution | 5440 × 3060 px (16 MP) |
| Image Format | JPEG, TIFF |
| Resolution and Frame Rate of Recorded Videos | 3840 × 2160 px (4K UHD) @30 fps 1920 × 1080 px (Full HD) @30 fps |
| Video Format | MP4 |
| Video Codecs | H264, H265 |
| Supported Storages | SD card (SDIO 3.0 compatible) USB flash drive (USB 3 or USB 2) |
| Storage Format | FAT32, NTFS, exFAT |
| Connection Options | HDMI, USB, WiFi |
| USB Interface | USB 3 |
| HDMI Interface | HDMI 2.0 (4K/1080p) |
| WiFi Interface | 5 GHz WiFi adapter (supplied) |
| WiFi Control | Via a free application for Android and iOS |
| Voice Control | Taking images, recording videos, pausing live image |

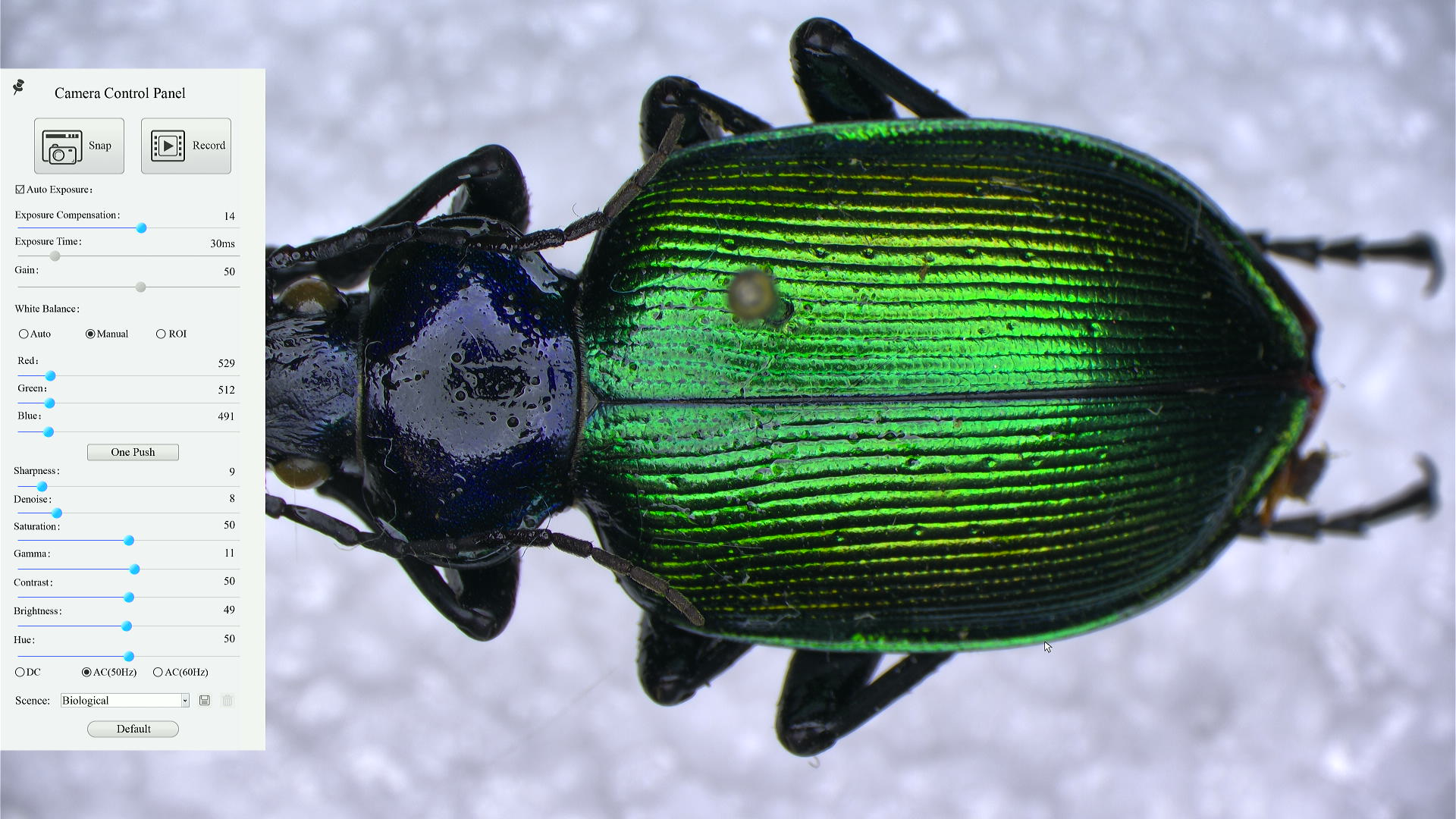

| Camera Control Features | Auto and manual exposure Auto exposure compensation White balance: Auto, Manual, ROI, One-Touch Gain, Sharpness, Saturation, Gamma, Contrast, Brightness, Hue 3D denoise Light flickering reduction |
| Other Features | Marking of interesting places in the image with arrows and text notes Up to 10× digital zoom Image flip and mirror Black and white mode Live image pause Display of the center cross and grid PIP Overlay with a file from CAD programs (DXF format) Image and video viewer Comparison of 2 or 4 images Comparison of image and live image Multilingual user interface: English, German, French, Italian, Spanish, Portuguese, Dutch, Japanese, Korean, Thai, Simplified Chinese, Traditional Chinese, Russian |
| Control by QuickPHOTO Programs | Yes |
| Built-In Monitor Options | Two optional built-in monitors to choose from: 13.3″, 4K UHD (3840 × 2160 px), IPS 13.3″, Full HD (1920 × 1080 px), IPS |
| Advanced Control Options | Optional foot switch for taking pictures and recording videos |
| Recommended Microscope Adapter | 0.63× or 1× with C-mount (not included) |
| Dimensions | 93 × 80 × 65 mm (3.66″ × 3.15″ × 2.56″) |
| Weight | 720 g |
| Compliances | CE, RoHS, WEEE |
Parts of the Basic Configuration (without optional built-in monitor)
- PROMICAM HDMI 16 camera
- 12V power supply
- Wireless mouse
- 32 GB SD card
- 5 GHz WiFi USB adapter
- Voice control adapter
- HDMI cable
- USB 3 cable
- USB flash drive with user manual and associated software
