PROMICAM PRO L55 MP COLOR USB 3 CAMERA for standard photodocumentation
PROMICAM PRO L5 is a cost effective color microscope USB 3 CMOS camera suitable for standard photomicrography documentation and industrial applications.
The camera is equipped with a lock screw micro USB 3.0 connector, it is backwards compatible with USB 2.0 ports.
The camera is fully supported by QuickPHOTO programs and extension modules: Deep Focus, Image Stitching, HDR and RECORD IT.
Suitable for Applications:
Brightfield / Darkfield
DIC
Biology / Live Cell Imaging
Histology / Pathology / Cytology
Metrology / Mineralogy / Metallurgy / Geology
Quality Control / Semiconductor Inspection
Documentation and Archiving
Education

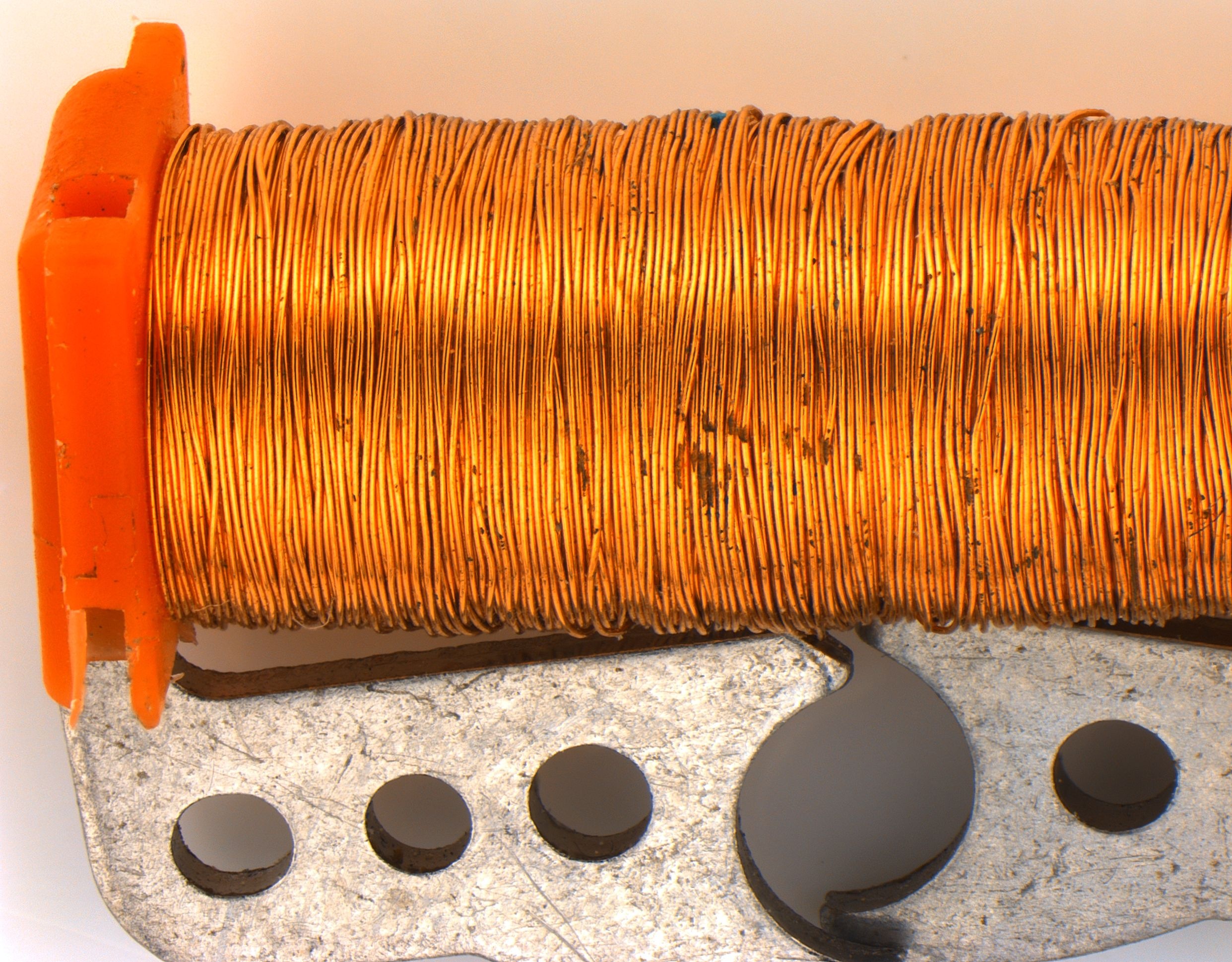

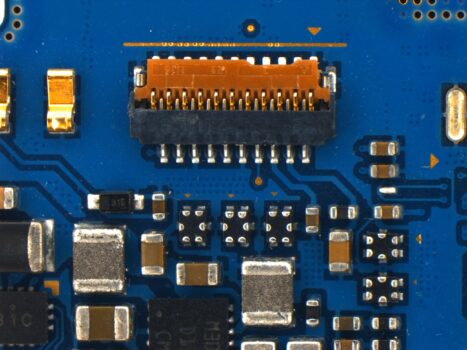

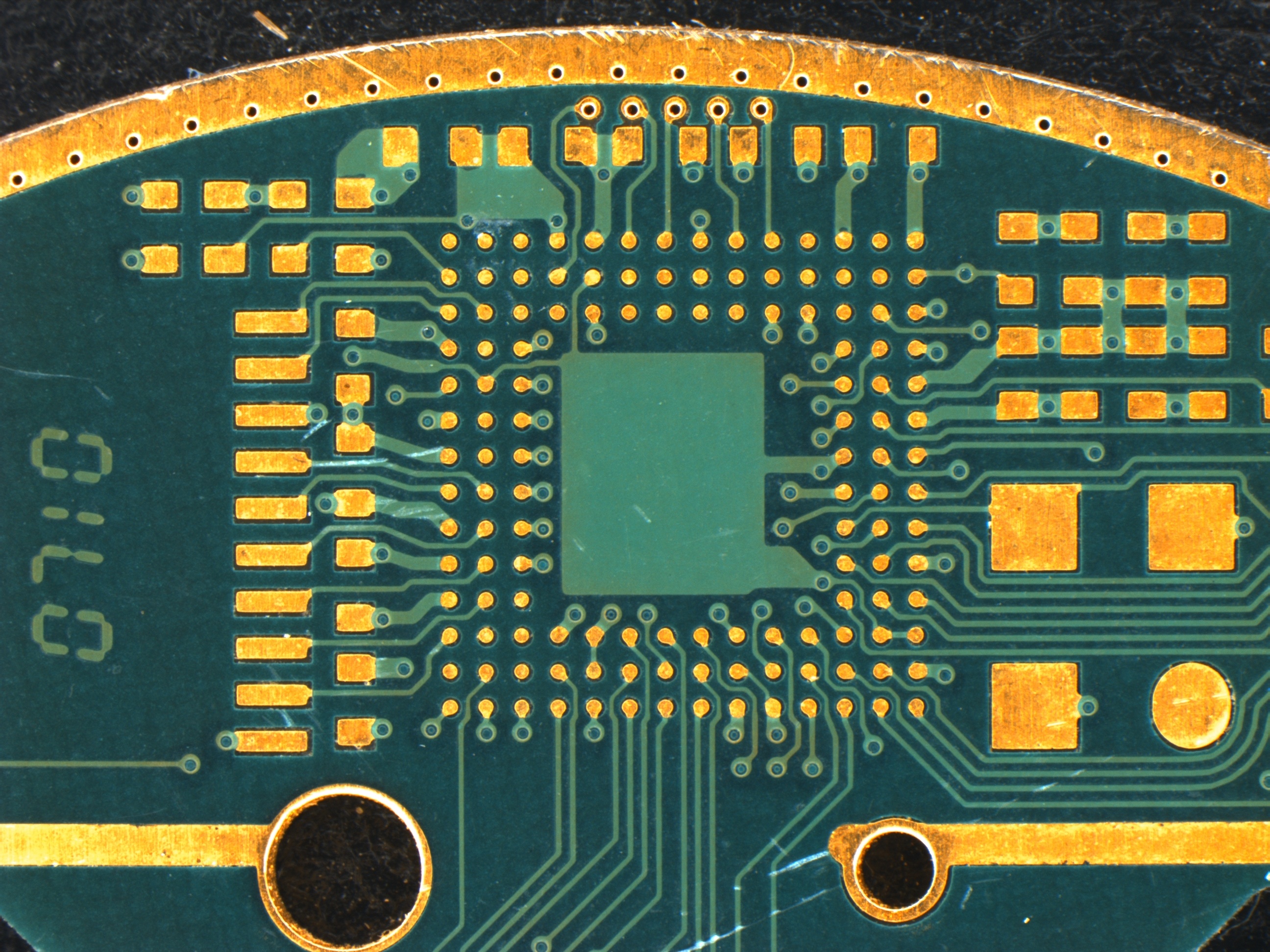

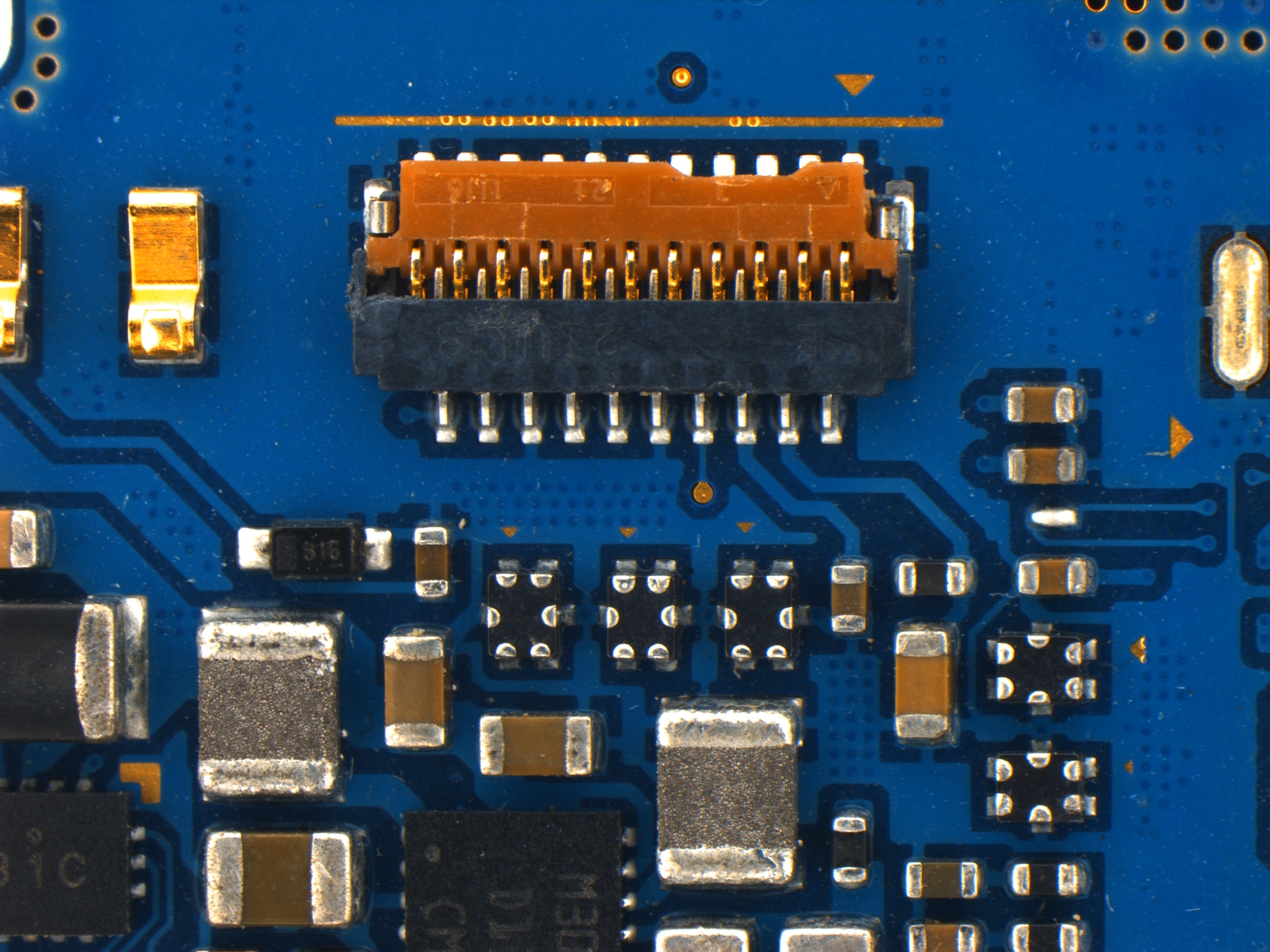

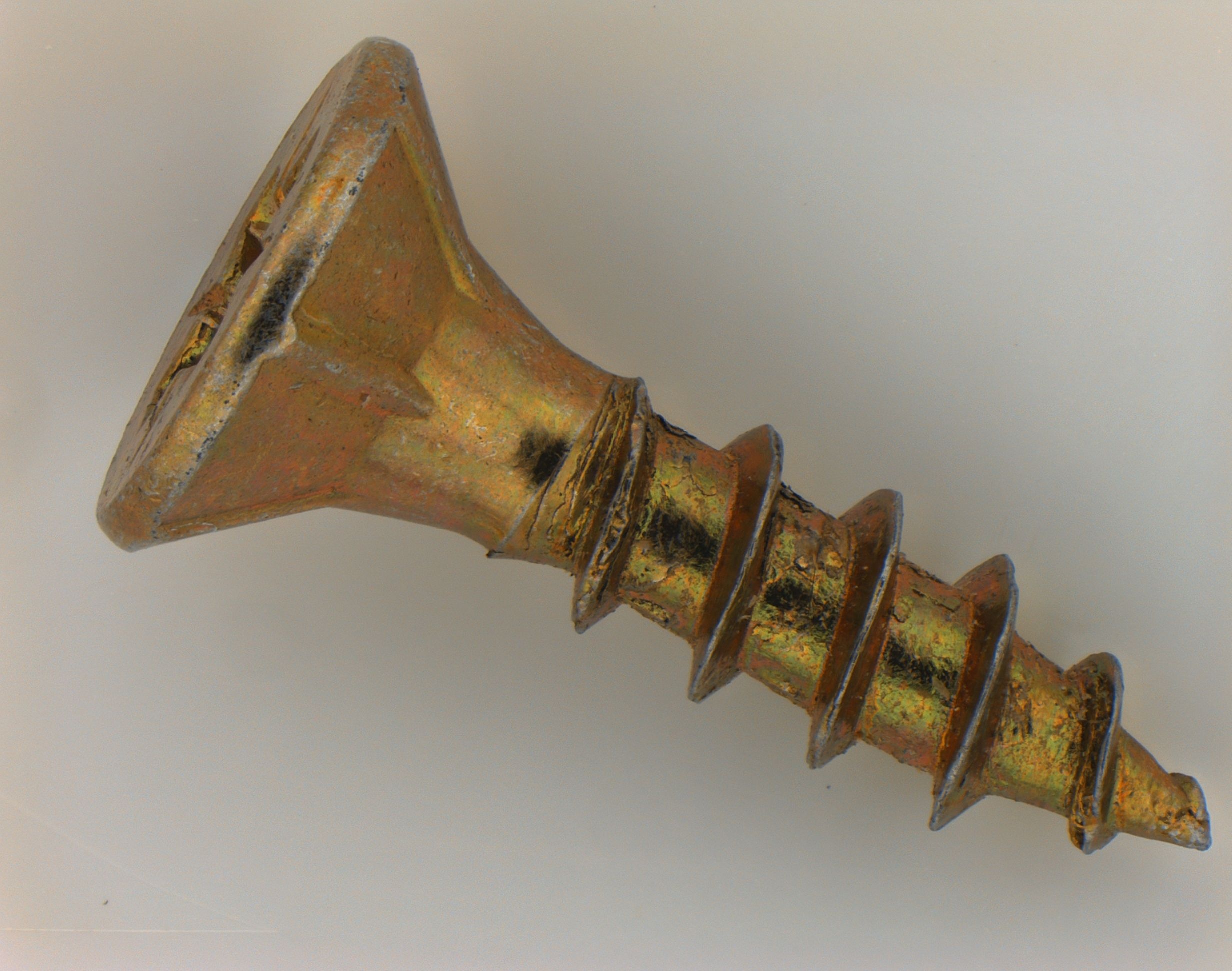

Sample Images Taken with the PROMICAM PRO L5 Camera
Images were acquired from Olympus® BX41 microscope and Olympus® SZX7 stereomicroscope with 0.5x C-mount optical adapter.
Loading Images
Technical Specifications
| Sensor Specifications | |
| Sensor Type | Onsemi CMOS rolling shutter, BSI (back-side illuminated), color |
| Sensor Size | 1/2.5″ (5.70 × 4.28 mm) |
| Sensor Aspect Ratio | 4:3 |
| Pixel Size | 2.2 x 2.2 µm |
| Resolution | 2592 × 1944 pixels (5 MP) |
| Supported Software | |
| Software | QuickPHOTO in version 4 (not included) |
| Camera Specifications (when used with QuickPHOTO) | |
| Image Resolutions | 2592 × 1944, 2592 × 1456, 1920 × 1080, 1296 × 972 pixels |
| Live View Resolution@Max. Frame Rate (fps) | 2592 × 1944@60 fps 2592 × 1456 (16:9 - ROI)@80 fps 1920 × 1080 (Full HD - ROI)@107 fps 1296 × 972 (subsampling)@60 fps |
| Lower Resolutions | Subsampling 2×2, ROI |
| Exposure Time | 1/10000 s (100 µs) – 30 s |
| Gain | 1 – 9.8× |
| Exposure Modes | Automatic, automatic-interactive, fluorescence (SFL Auto), manual |
| White Balance | Automatic, automatic-regional, manual |
| Black Balance | Automatic-regional, manual |
| Camera Characteristics | |
| Dynamic Range | 74.3 dB |
| Quantum Efficiency (green color 525 nm) | 73.5 % |
| Max. Signal to Noise Ratio | 40 dB |
| Interface | USB 3 Gen 1 (backwards compatible with USB 2.0) |
| USB connector | USB-C screw lock |
| Mount | C-mount / CS-mount |
| Dimensions | 36 × 36 × 25 mm (1.42″ × 1.42″ × 0.98″) |
| Weight | 70 g |
| Tripod Mount | 1/4″ – 20 |

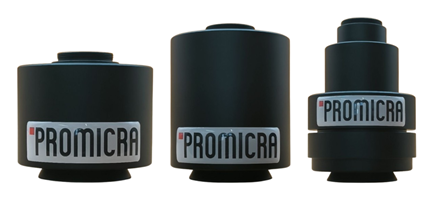

| Recommended Microscope Coupler | 0.5× C-mount |
| Compliances | CE, RoHS, WEEE |
| Included in the Box | PROMICAM PRO L5 camera, 3 m USB 3 cable with lock screw connector |
| Minimum System Requirements | |
| Processor | Dual-core |
| Operating Memory | 2 GB |
| USB port | 1x USB 3 or USB 2 |
| Operating System | Microsoft® Windows® 11 / 10 (32bit or 64bit) |
| Recommended Computer Configuration | |
| Processor | Intel® Core™ i5 / AMD RYZEN™ 5 or better |
| Operating Memory | 16 GB or more |
| USB port | 1x USB 3 |
| Operating System | Microsoft® Windows® 11 |
